3kW Solar System: Roof Space, Panel Count and Payback Timeline

If you already know what a 3kW system costs, the two questions that decide whether it actually fits your home are different: will it physically fit on your roof, and how long until it pays for itself. Both depend on specifics most generic articles skip.

This guide covers the roof space a 3kW system actually needs by panel wattage, how to count panels correctly, and how to work out your real payback period instead of relying on a single average figure. For the cost breakdown and subsidy math, see our 3kW solar system price guide.

How much roof space does 3kW need?

A 3kW system needs roughly 250 to 320 square feet of shadow-free roof. That range exists because the exact figure depends entirely on panel wattage, not system size alone.

Panel wattage	Panels for ~3kW	Approx. panel area	Total space needed (with access)
540Wp	6 panels (3.24kWp)	about 155 sq ft	280 to 320 sq ft

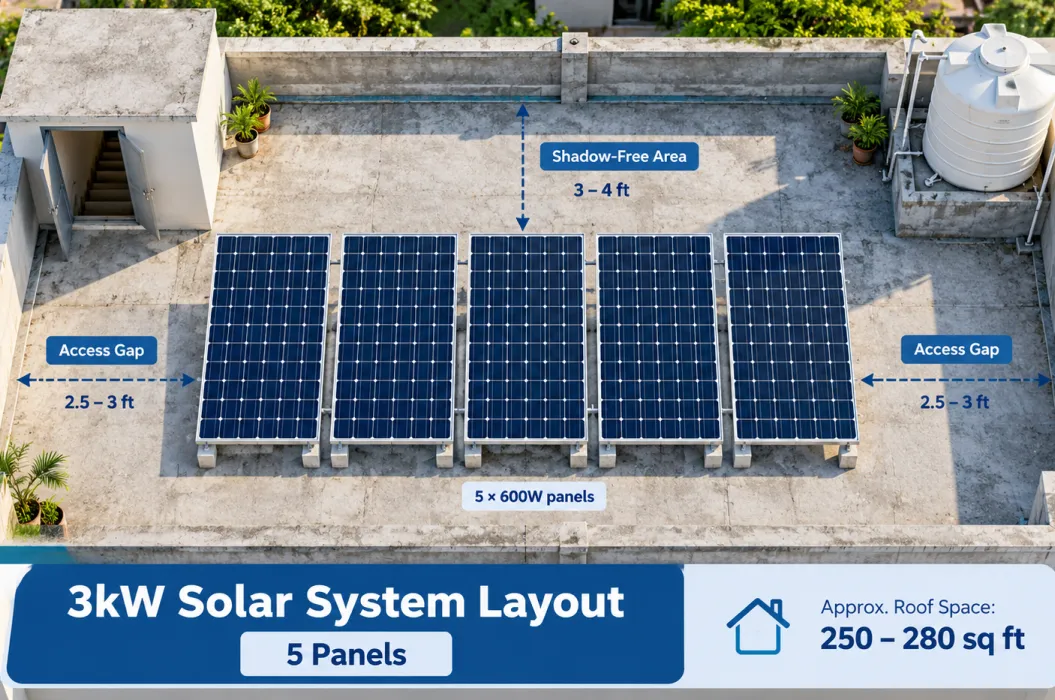

600Wp (Atal M10R 144)	5 panels (3.0kWp)	about 139 sq ft	250 to 280 sq ft
635Wp (Atal G12R 132)	5 panels (3.18kWp)	about 145 sq ft	250 to 280 sq ft

The "total space needed" column includes the gaps required for cleaning access, cable routing and walking space around the array, not just the panels themselves. A system sized purely to panel footprint will look tight and be hard to maintain.

Fewer, higher-wattage panels change the layout math in your favour on a small roof. Dropping from six 540Wp panels to five 600Wp or 635Wp panels means one less mounting rail run, one less set of clamps, and often the difference between a design that fits a 3 BHK terrace and one that does not. Atal's M10R 144 Series panel measures 2,278 x 1,134 mm; the G12R 132 Series measures 2,384 x 1,134 mm. Both need one clear run of at least 2.4 to 2.5 metres on your roof.

Panel count by wattage

Getting the panel count right matters for two practical reasons beyond space: fewer panels means a simpler, cheaper mounting structure, and it affects how neatly the array fits against parapets, water tanks and staircase heads, which is usually the real constraint on an Indian rooftop, not raw area.

Work it out from your actual roof dimensions, not the other way round. Measure the longest unobstructed run on your roof first, then check it against the panel's long dimension, about 2.3 to 2.4 metres for all three Atal series, plus roughly 150mm of clearance per panel edge for clamps. Our G12R vs M10R guide compares the exact dimensions of each series side by side.

Roof type changes the real number

The same panel count needs noticeably different space depending on what is under it:

Flat RCC terrace. Needs a tilt structure, typically angled 10 to 15 degrees facing south, which means rows of panels must be spaced apart so one row does not shade the row behind it. This spacing, not the panels themselves, is usually what pushes total area toward the higher end of the range.

Sloped tin or AC sheet roof. Panels mount closer to flush with the existing slope using rail clamps, with little to no row spacing needed. This is the more space-efficient option when the roof already faces a reasonable direction.

Roof with existing obstructions. Water tanks, solar water heaters, satellite dishes and staircase headrooms all cast shadows that move through the day. A 3kW layout has to work around these, not just avoid them at noon. Half-cut cell panels, standard on all of Atal's range, limit the output loss when part of a panel is shaded, but the clean fix is still avoiding the shadow in the first place.

Shading and orientation

A south-facing roof in most of India gets the best year-round output. East or west-facing roofs still work but lose roughly 10% to 15% of potential generation compared to due south, which matters more at 3kW than at larger sizes because there is less headroom to absorb the loss.

Before finalising a layout, track shadows across a full day, not a single snapshot, since a shadow that looks clear at 11am can fall squarely across the array by 3pm in winter when the sun sits lower. Our guide on whether solar panels work at night and in monsoon covers the seasonal swing in more detail.

How to calculate your actual payback period

Most articles quote a single number, "3 to 4 years," for every 3kW system. That number is an average, not your number. Here is how to calculate yours.

Step 1: Find your net cost. Take the installed price (₹1,80,000 to ₹2,10,000 before subsidy, per our price guide) and subtract the PM Surya Ghar subsidy of ₹78,000, plus any state top-up you qualify for under our state subsidy guide. That gives your actual out-of-pocket cost, typically ₹1,00,000 to ₹1,32,000.

Step 2: Find your real daily units. A 3kW system produces 12 to 15 units a day as a yearly average in most of India, higher in Rajasthan and Gujarat, lower in cloudier regions. Multiply by 30 for a monthly figure.

Step 3: Find your actual tariff. Pull your last electricity bill and check the per-unit rate at your consumption slab, not the lowest slab rate often quoted in marketing material. Many state tariffs are slabbed, so your real average rate per unit can be higher than the headline number.

Step 4: Calculate.

Net cost ÷ (Monthly units × Tariff per unit) = Payback in months

Worked example: net cost ₹1,10,000, 420 units a month (14 units a day average), tariff ₹7 per unit.

₹1,10,000 ÷ (420 × ₹7) = ₹1,10,000 ÷ ₹2,940 = about 37 months, roughly 3 years.

Run the same formula with your own numbers. A lower tariff slab or a cloudier location can stretch this to 5 years; a high tariff slab in a sunny state can bring it under 3.

When your payback will be longer than average

Three situations consistently push payback past the commonly quoted range:

• Low daytime consumption. If your household is empty for most daylight hours, more of your generation gets exported to the grid at the lower export rate instead of offsetting your own usage at the full retail rate, which slows payback.
• A lower electricity tariff slab. Households using under 100 to 200 units a month often sit in a subsidised low tariff slab, which reduces what each solar unit is actually worth to you.
• A shaded or poorly oriented roof. Lower real-world output stretches every other number in the calculation.

None of these make 3kW a bad choice. They change the number you should expect, which matters more for planning than a generic average.

When 3kW is the wrong size

3kW is sized for 2 to 3 BHK homes using roughly 300 to 450 units a month with one AC. If your consumption sits well outside that range, a different size pays back faster:

• Under 150 units a month: see our 1kW and 2kW guide
• Over 450 units a month, multiple ACs: see our 5kW solar system guide

Sizing to your actual last twelve months of consumption, not a size you have heard is popular, is what makes the payback math above work in your favour.

Final word on 3kW roof space and payback

A 3kW system needs 250 to 320 square feet, varying mainly with panel wattage, and the panel count, not just the kilowatt rating, decides how well it fits a constrained roof. Payback is not a fixed number: it depends on your net cost after subsidy, your real daily output, and your actual tariff slab, and the formula above lets you calculate it instead of guessing.

Measure your roof, pull twelve months of bills, and run the numbers before committing to a size. Try our solar calculator for a quick estimate from your own bill, or talk to the Atal Solar team for a layout suited to your specific roof.

Frequently asked questions

How much roof space does a 3kW solar system need?

Roughly 250 to 320 square feet of shadow-free roof, including access space for cleaning and cabling. The exact figure depends on panel wattage: five 600Wp or 635Wp panels need noticeably less space than six 540Wp panels for the same 3kW capacity.

How many solar panels are needed for a 3kW system?

With 600Wp panels, 5 panels give about 3.0kWp. With 635Wp panels, 5 panels give about 3.18kWp. With older 540Wp panels, you need 6. Fewer, higher-wattage panels reduce the mounting structure and labour needed for the same capacity.

What is the real payback period for a 3kW solar system?

It depends on your net cost after subsidy, your daily units, and your actual electricity tariff, not a fixed average. Divide your net cost by your monthly units multiplied by your tariff per unit. Most households land between 3 and 5 years; the commonly quoted "3 to 4 years" is a midpoint, not a guarantee.

Does roof orientation affect a 3kW system's payback?

Yes. A south-facing roof gets the best output in most of India. East or west-facing roofs lose roughly 10% to 15% of potential generation, which directly slows payback since output drives every other number in the calculation.

Can a 3kW system fit on a small terrace?

Often, yes, if you choose higher-wattage panels. Five 600Wp or 635Wp panels fit a meaningfully smaller footprint than six 540Wp panels for the same capacity, which can be the difference between a workable layout and a cramped one on a tight roof.

Why does my payback estimate differ from what my installer quoted?

Installer estimates often use a national average tariff and average daily units, not your actual bill. Pull your last twelve months of bills, find your real average tariff per unit, and use the formula in this guide to calculate a number specific to your household.
